Density and moisture content

A high-density MDF panel. Moisture content at manufacture is typically 5% to 9%.

Strength and stiffness

  • Internal bond (EN 319): 0.80 N/mm² minimum from 6mm to 12mm, 0.75 N/mm² minimum from 12mm to 25mm
  • Modulus of rupture (bending strength, EN 310): 27.0 N/mm² minimum up to 9mm, 26.0 N/mm² to 12mm, 24.0 N/mm² to 19mm, 22.0 N/mm² to 25mm
  • Modulus of elasticity (stiffness, EN 310): 2,700 N/mm² minimum up to 9mm, 2,500 N/mm² to 12mm, 2,400 N/mm² to 19mm, 2,300 N/mm² to 25mm

Screw holding

Quoted for boards over 12mm, tested to EN 320:

  • Face: 1,200 N minimum
  • Edge: 900 N minimum

Tolerances and finish

  • Thickness tolerance (EN 324-1): ±0.15mm across all thicknesses
  • Supplied pre-sanded with a smooth face, ready to paint or laminate. A light sand with 200 grit helps before applying very thin foils. Don't over-sand the faces, as an imbalance between them can cause warping.

Moisture performance

  • Thickness swell after 24 hours in water (EN 317): under 12% from 6mm to 9mm, under 10% to 12mm, under 8% to 19mm, under 7% to 25mm
  • Dimensional movement in length and width (EN 318): 0.30%
  • Dimensional movement in thickness (EN 318): 4.0%, falling to 3.0% in the thickest boards
  • After wet cycle test (EN 321): thickness swelling 19% or less from 6mm to 9mm, down to 15% in thicker boards, with internal bond retained at 0.30 N/mm² and above

Fire Rating

Reaction to fire under EN 13986 is D-s2, d0 in boards of 9mm and above. MR is not a flame retardant board. Where a fire rating is required, specify MEDITE Premier FR, which achieves Euroclass B.

Emissions

MEDITE MR meets the tighter EU REACH formaldehyde limit that applies from 6 August 2026, classification E05, confirmed by testing to EN 717-1. It is also CARB Phase 2 compliant.

Standards

  • Manufactured to EN 13986 and EN 622-1
  • Meets MDF-H grade, Option 1, of EN 622-5
  • Suitable for internal humid environments as defined by Use Class 2 of EN 335

Identification

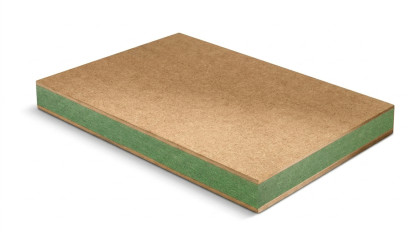

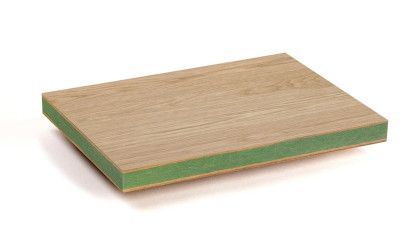

MEDITE colour MR green so it can be told apart from the rest of the MEDITE MDF range on site.
